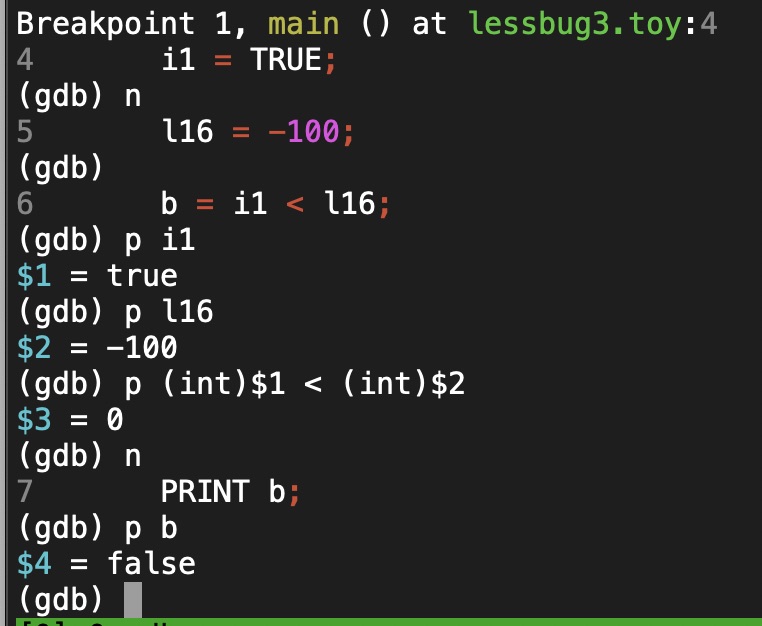

Screenshot

The git repo for the project now has a way to encode predicates, which I figured was a good first step towards adding some useful control flow (IF+LOOPS).  Specifically, the toy language/compiler now supports the following operators:

  • <
  • <=
  • >
  • >=
  • EQ
  • NE

This list works for any floating point or integer type (including BOOL, which is like “INT1”).  I also added AND,OR,XOR (for integer types, including BOOL.)  The grammar has a NOT operator, but it’s not implemented in the parser yet.

Here’s a sample program:

BOOL b;
BOOL i1;
INT16 l16;
i1 = TRUE;
l16 = -100;
b = i1 < l16;
PRINT b;
b = i1 > l16;
PRINT b;

My MLIR is:

module {
  toy.program {
    toy.declare "b" : i1
    toy.declare "i1" : i1
    toy.declare "l16" : i16
    %true = arith.constant true
    toy.assign "i1", %true : i1
    %c-100_i64 = arith.constant -100 : i64
    toy.assign "l16", %c-100_i64 : i64
    %0 = toy.load "i1" : i1
    %1 = toy.load "l16" : i16
    %2 = "toy.less"(%0, %1) : (i1, i16) -> i1
    toy.assign "b", %2 : i1
    %3 = toy.load "b" : i1
    toy.print %3 : i1
    %4 = toy.load "i1" : i1
    %5 = toy.load "l16" : i16
    %6 = "toy.less"(%5, %4) : (i16, i1) -> i1
    toy.assign "b", %6 : i1
    %7 = toy.load "b" : i1
    toy.print %7 : i1
    toy.exit
  }
}

Here’s the LLVM-IR after lowering:

declare void @__toy_print_f64(double)

declare void @__toy_print_i64(i64)

define i32 @main() !dbg !4 {
  %1 = alloca i1, i64 1, align 1, !dbg !8
    #dbg_declare(ptr %1, !9, !DIExpression(), !8)
  %2 = alloca i1, i64 1, align 1, !dbg !11
    #dbg_declare(ptr %2, !12, !DIExpression(), !11)
  %3 = alloca i16, i64 1, align 2, !dbg !13
    #dbg_declare(ptr %3, !14, !DIExpression(), !13)
  store i1 true, ptr %2, align 1, !dbg !16
  store i16 -100, ptr %3, align 2, !dbg !17
  %4 = load i1, ptr %2, align 1, !dbg !18
  %5 = load i16, ptr %3, align 2, !dbg !18
  %6 = zext i1 %4 to i16, !dbg !18
  %7 = icmp slt i16 %6, %5, !dbg !18
  store i1 %7, ptr %1, align 1, !dbg !18
  %8 = load i1, ptr %1, align 1, !dbg !19
  %9 = zext i1 %8 to i64, !dbg !19
  call void @__toy_print_i64(i64 %9), !dbg !19
  %10 = load i1, ptr %2, align 1, !dbg !20
  %11 = load i16, ptr %3, align 2, !dbg !20
  %12 = zext i1 %10 to i16, !dbg !20
  %13 = icmp slt i16 %11, %12, !dbg !20
  store i1 %13, ptr %1, align 1, !dbg !20
  %14 = load i1, ptr %1, align 1, !dbg !21
  %15 = zext i1 %14 to i64, !dbg !21
  call void @__toy_print_i64(i64 %15), !dbg !21
  ret i32 0, !dbg !8
}

I’m going to want to try to refactor the type conversion logic, as what I have now in lowering is pretty clunky.
